Easy-to-Read Humidity Indicator Cards for Moisture Protection in Aerospace and High-Tech Equipment
Humidity indicator card (HIC) is a device on which a moisture-sensitive chemical is impregnated such that it will color change when the indicated relative humidity thresholds exceeded. This has usually been of two types, a blotting paper impregnated with cobalt(II) chloride base and color change blue to pink when RH threshold exceeded; the other is cobalt-free chloride base and color change brown to blue when threshold exceeded.The spots on the humidity indicator card change color to indicate the humidity in a given cargo or environment, allowing workers to monitor humidity at a glance and inspect cargo if humidity exceeds safe levels.Humidity indicator is a cost-effective way to detect and indicate relative humidity levels. They are available in many configurations and used in many applications which sensitive in humidity conditions, especially food, chemicals, military, semiconductor, etc.
Features
• Cost-effective and convenient to Use
• Easy to observe;
• Lead-free RoHS compliant;
• High sensitivity;
• Quickly determine humidity (when indication point turns to be purple which is between blue and pink, the number of indication point will be the environment humidity at present); effective moisture proof.
• Reversible
• Easy to observe;
• Lead-free RoHS compliant;
• High sensitivity;
• Quickly determine humidity (when indication point turns to be purple which is between blue and pink, the number of indication point will be the environment humidity at present); effective moisture proof.
• Reversible

|
Product Name
|
Easy-to-Read Humidity Indicator Cards for Moisture Protection in Aerospace and High-Tech Equipment
|
|
Type
|
Cobalt-free or Cobalt-containing
|
|

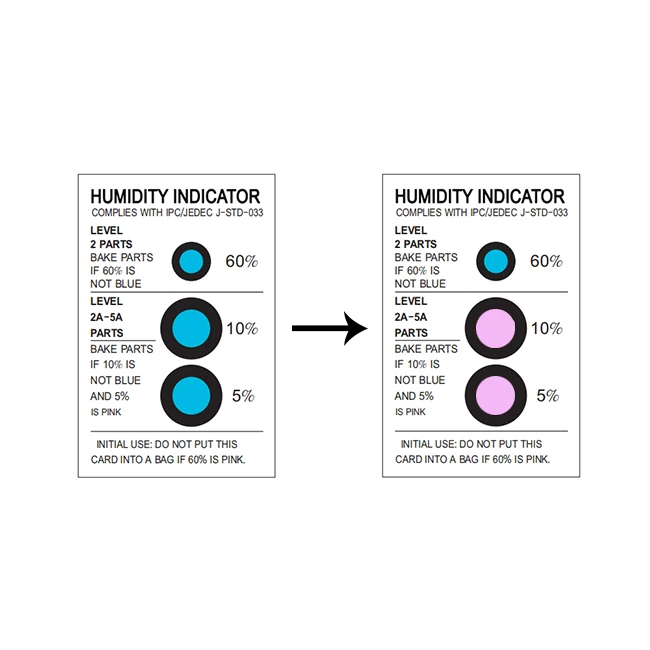

Color Change
|
Blue to pink or Brown to blue
|
|
RH Thresholds Indicating Example
|

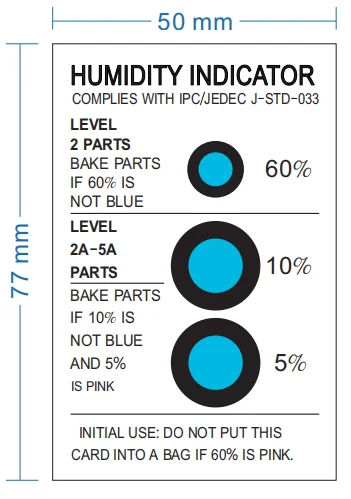

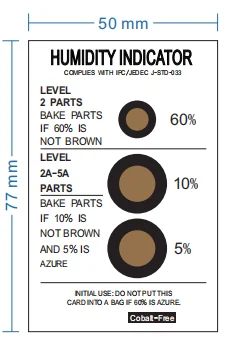

3 spots: RH 5%-10%-60%

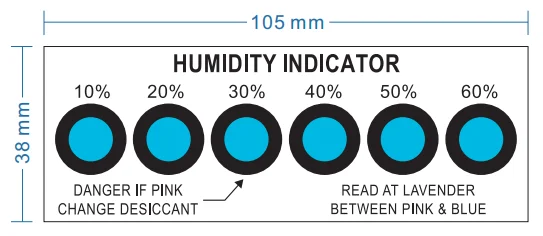

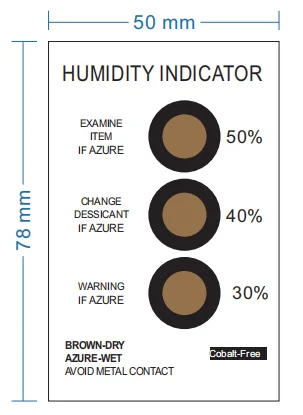

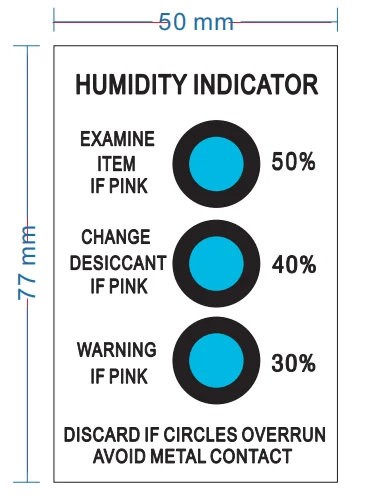

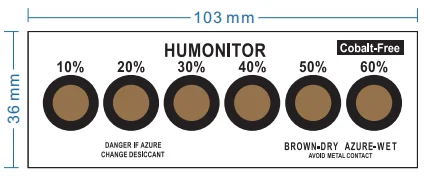

3 spots: RH 30%-40%-50% 6 spots: RH 10-20-30-40-50-60% |
|
Application
|
Electronic, Chemistry, food, semiconductor, storage container, etc
|
|
Storage Conditions
|
Dry and suitable temperature 10-40°C
|
|
Customization
|
Shape, design, logo printing, RH% threshold, size, etc
|
|
Sample
|
Free regular samples are available
|
|
Lead time
|
<7days for regular samples, 10-15 days for customized samples and regular bulk orders
|
|
Package
|
200 Pieces/can with seal-bag packaging, 12 cans/carton
|






Detailed Images
